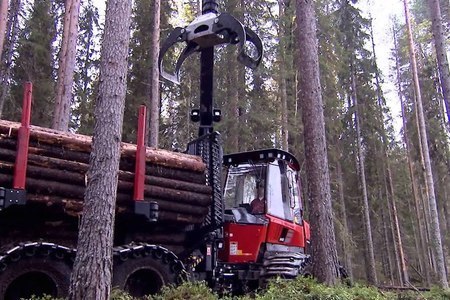

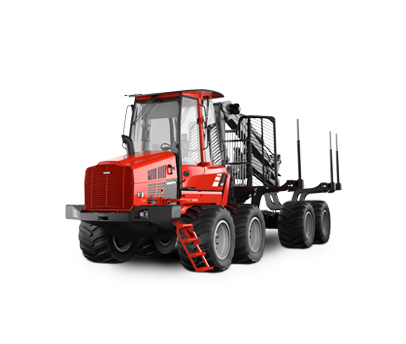

The Komatsu 845 forwarder is built to provide the highest possible productivity in thinning and lighter clear cutting. The Komatsu 845 forwarder is agile with low ground pressure and has excellent driver comfort.
49 AWF-4V, 4-cylinder diesel engine with turbo and intercooler. EPA Tier 4 Final and EU stage 4
Stroke volume:
4,9 l
Fuel Tank:
120 l
Hydraulic system
Max. working pressure:
280 l/min at 2 000 rpm
Loader and grapple
Gross lifting torque:
103 kNm
Gross slewing torque:
28,7 kNm
Loader:
Komatsu 105F
Reach:
7.7 m / 9.5 m / 10 m
Rotator:
G121 and slewing dampened link.
Grapple:
Komatsu G28
Electrical System
Voltage:
24 V
Battery capacity:
2 x 140 Ah
Generator:
2 x 100A
Transmission
Driving speed:
0-8/20 km/h
Tractive force:
166 kN
Notes
General information:
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
